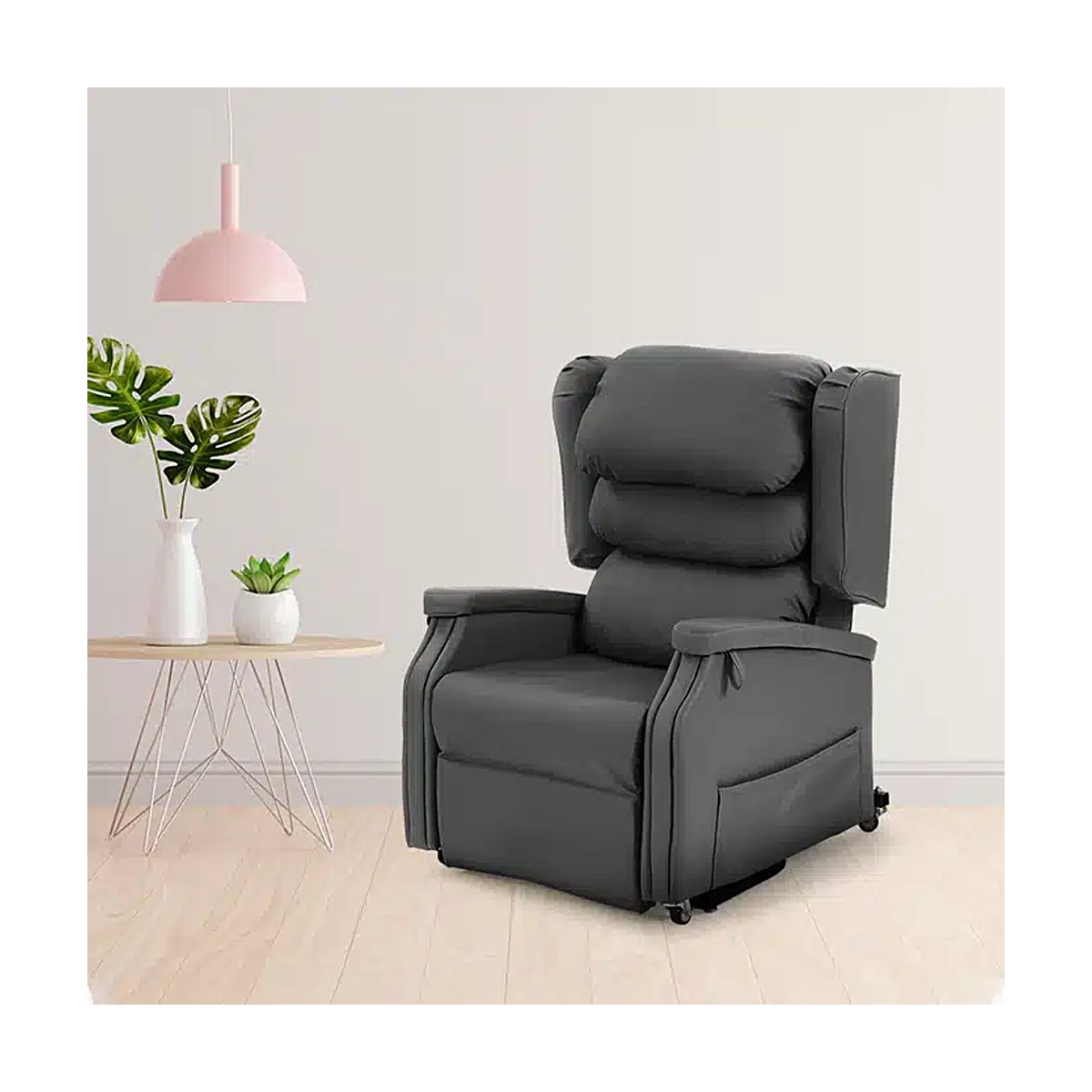

Configura Electric Lift Chair

The Configura Comfort chair is the latest innovation, providing an unprecedented level of functionality and cost effectiveness.

Features:

Key Features

• 2 Motor
• Tilt-in-Space
• Interchangeable backrest options – adjustable pillow backrests
• Lateral supports and adjustable lateral supports
• Vapour Permeable Seat and Backrest
• Easy to use handset
• Pressure Care Seating Options
• Fully hoist accessible with Return Platform and most Stand Hoists, to facilitate reduced carer packages
• Integrated self-supply overlay to make fitting your own cushion easy and simple
• No-shear backrest recline to retain pelvic stability
• Castors for easy mobility
• Knock-down design for easy deliveries
• Integrated depth adjustment – no extra parts required

The Configura Comfort chair is appropriate for:

• Users at risk of pressure damage
• Users with current pressure damage (subject to professional assessment)
• Ambulant, semi-ambulant and non-ambulant users
• Accommodation and encouragement of good posture
• Users with Neurological conditions
• Users with a Kyphosis
• Users with oedematous legs and/or fluid build-up

Specific Dimensions for SMALL:
Seat height – 406mm (16″)
Seat height with Haks – 457mm (18″)
Seat width – 457mm (18″)
Seat depth position – 457mm (18″)
Armrest height – 180mm (7″)
Rise height to front of chair STANDARD – 546mm (21.5″)
Rise height to front of chair MEDIUM – 622mm (24.5″)
Chair to wall/ furniture – 457mm (18″)
Safe working load – 130kg
Back height – 700mm

Overall Dimensions:
Width – 711mm (28″)
Length upright position – 940mm (37″)
Length recline position – 1702mm (67″)
Height – 1092mm (43″)
Mass – 65kg (143 lbs)

Specific Dimensions for MEDIUM:
Seat height – 406mm (16″)
Seat height with Haks – 457mm (18″)
Seat width – 457mm (18″)
Seat depth position – 457mm (18″)
Armrest height – 180mm (7″)
Rise height to front of chair STANDARD – 546mm (21.5″)
Rise height to front of chair MEDIUM – 622mm (24.5″)
Chair to wall/ furniture – 457mm (18″)
Safe working load – 130kg
Back height – 700mm

Overall Dimensions:
Width – 711mm (28″)
Length upright position – 940mm (37″)
Length recline position – 1702mm (67″)
Height – 1092mm (43″)
Mass – 65kg (143 lbs)

Specific Dimensions for LARGE:
Seat height – 457mm (18″)
Seat height with haks – 508mm (20″)
Seat width – 558mm (22″)
Seat depth position – 508mm (50″)
Armrest height – 180mm (7″)
Rise height to front of chair STANDARD – 508mm (20″)
Rise height to front of chair MEDIUM – 572mm (22.5″)
Rise height to front of chair FLAT – 711mm (28″)
Chair to wall/ furniture – 483mm (19″)
Safe working load – 160kg
Back height – 700mm

Overall Dimensions
Width – 812mm (32″)
Length upright position – 940mm (37″)
Length recline position – 1702mm (67″)
Height – 1143mm (45″)
Mass – 71kg (156lbs)

Compliance Information

AS/NZS 4688.2-2000 Part 2,3,4
ARTG#323913

Australian Standards

AS/NZS 4688.2-2000 Part 2,3,4

ARTG Information

323913
