Description
Specifications:
Chair Width – over castor wheels 520mm (20.5 inch)
Chair Width – over arms 570mm (22.5″)
Chair Width – inside arms 475mm (18.75″)– smaller users see accessory pages
Chair Length – including footrest 1040mm (41″) and 835mm (33″) when footrest is up). A straight push handle accessory can reduce this by 70mm (3″)
Backrest Width 460mm (18″)
Backrest Height from Cushion to top 440mm (17″)
Toilet Height Clearance (maximum) 510mm (20″)
Toilet width clearance at narrowest 295mm or 11.5″ (centre of track, approx. 200mm or 8″ above floor)
Toilet clearance can depend upon the shape of the toilet pan

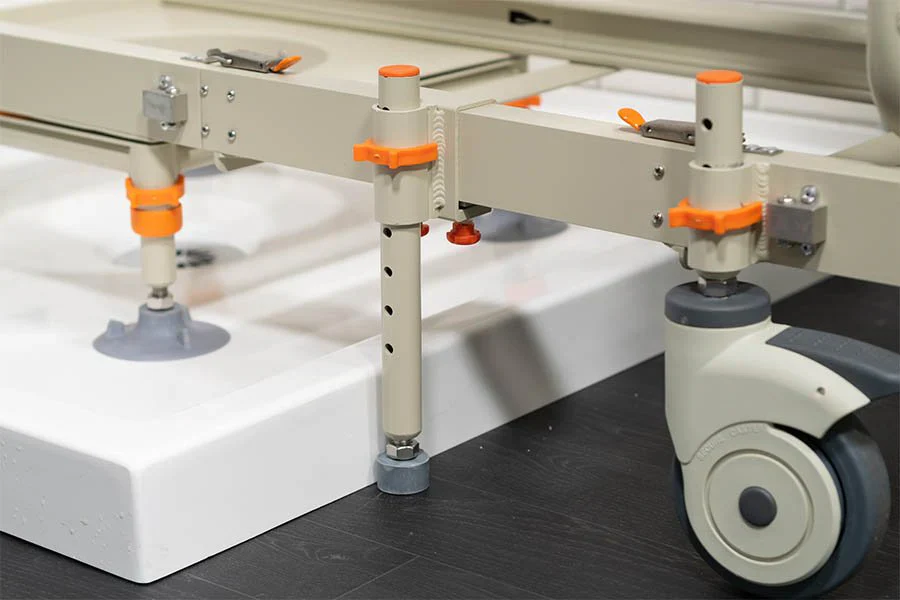

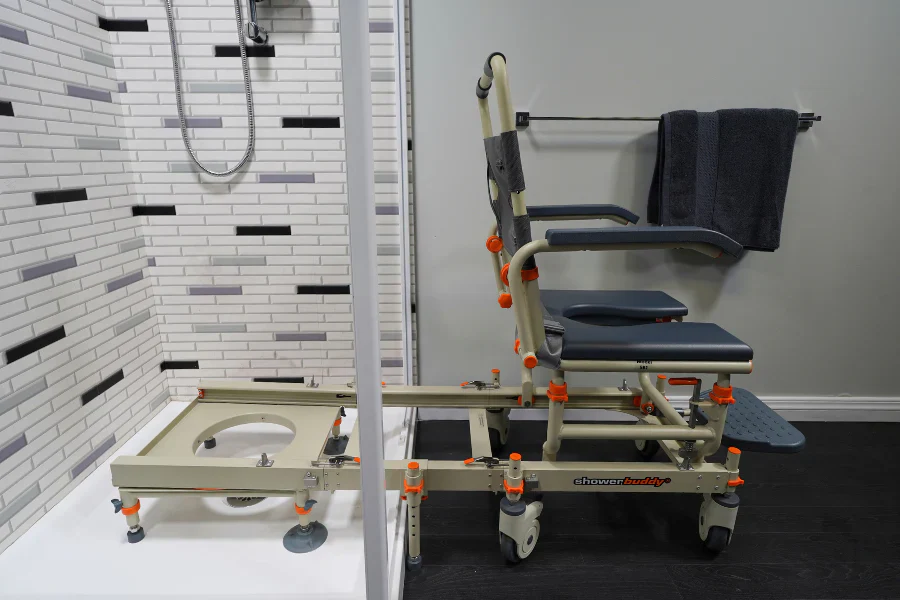

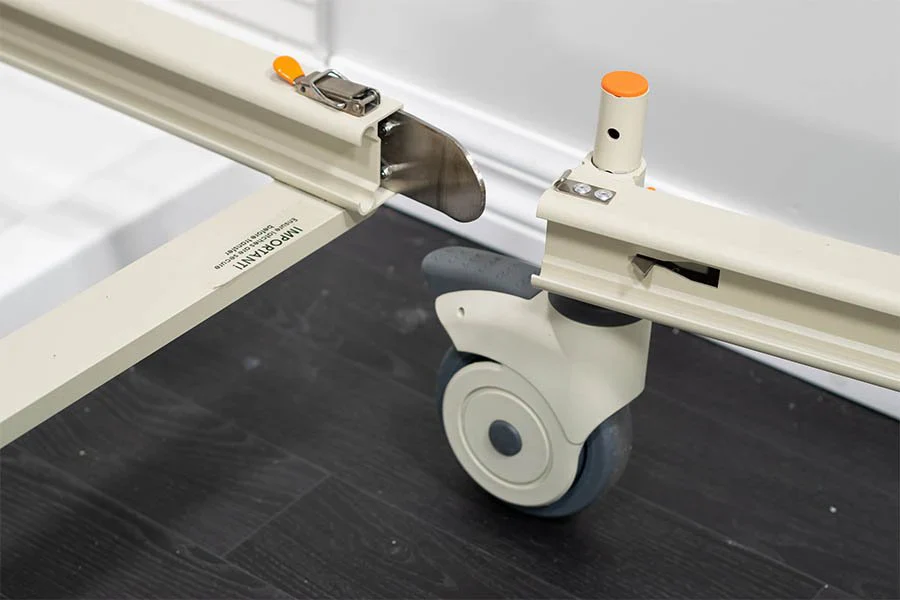

Bridge Length (Standard) 405mm (16″) or Accessory 300mm (12″) or 200mm (8″) or customized, see Accessories
Seat Cushion Dimensions 460mm W x 430mm D (18″ x 17″D)

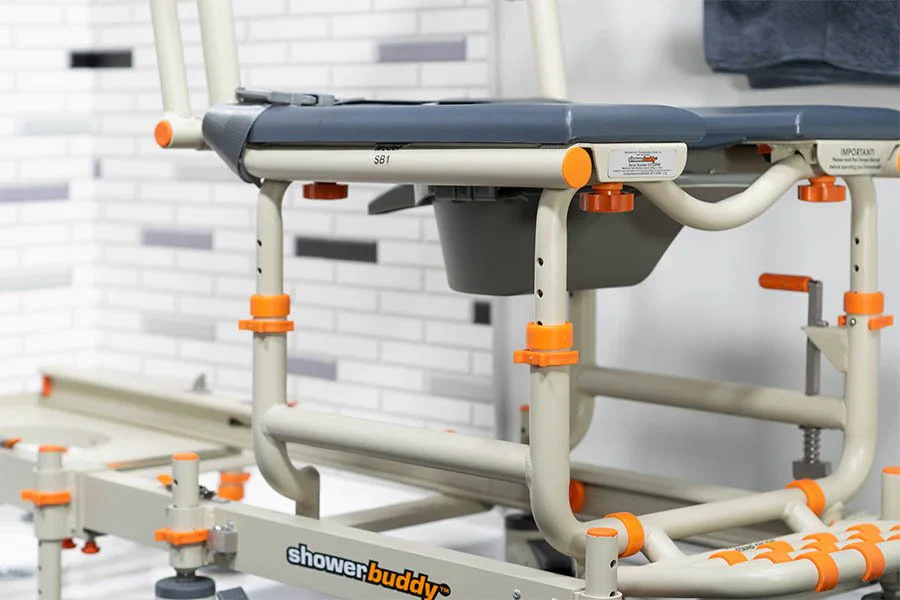

Seat Height from Floor 550mm (21.5″) to 675mm (26.5″) (Adjustable)
Seat Cushion Openings – see Dimension Drawing and Accessories for options

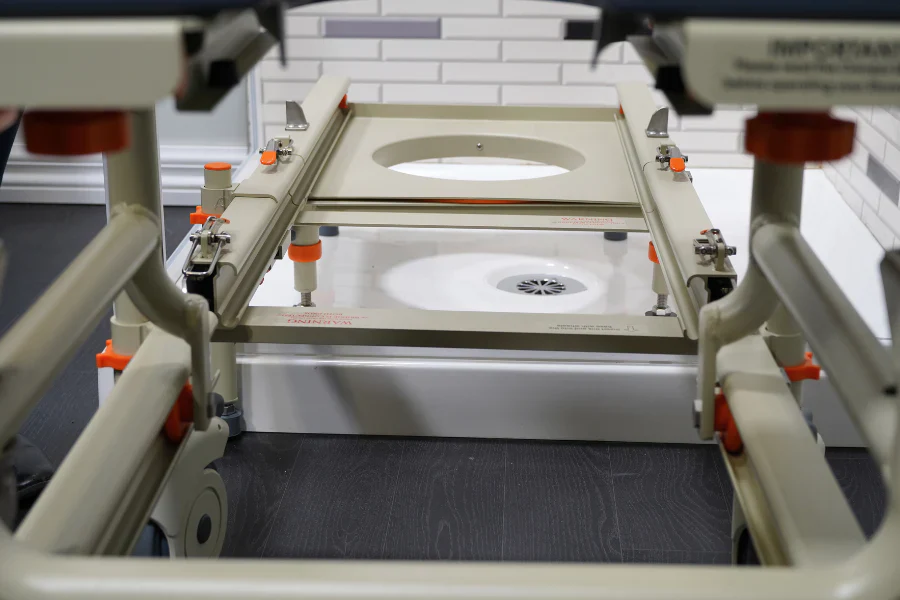

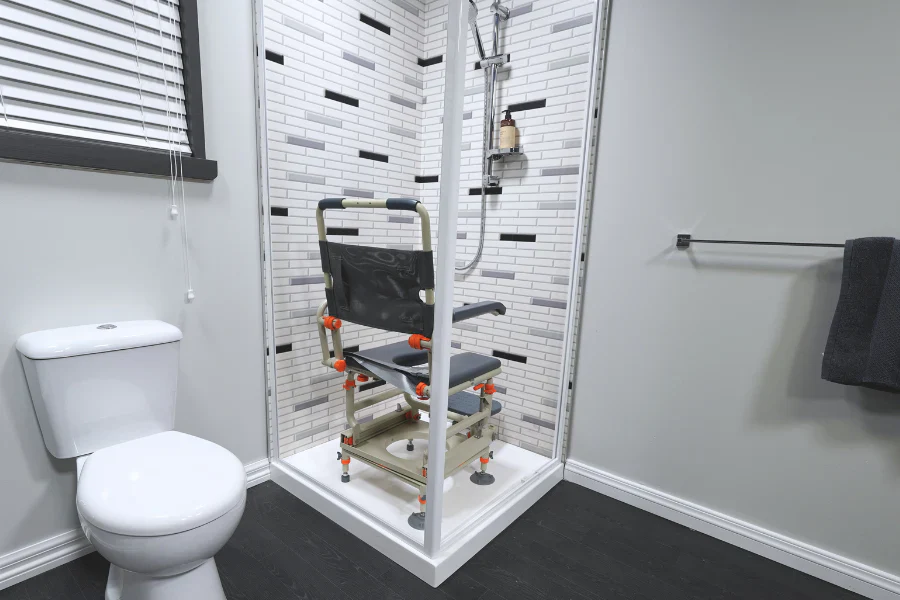

Shower Base unit dimensions 500mm (19.5″) x 455mm (18″)
Box dimensions 760mm x 570mm x 630mm (30″ x 23″ x 25″)
Box Gross Weight 29.7kg (65lb)
